UT-BAC

Bottle Air Cleaning Machine

The machine family documented in the source catalog as Bottle Air Cleaning Machine, with model and technical configuration data transcribed from the catalog tables.

Capacity: 30-40Bottles/min · 60-80Bottles/min · 100-120Bottles/min
Power Supply: 220V 50HZ 1.5KW · 380V 50HZ 1.1KW · 220V/380V 50HZ 3.0KW

Request a quote Plan a complete production line

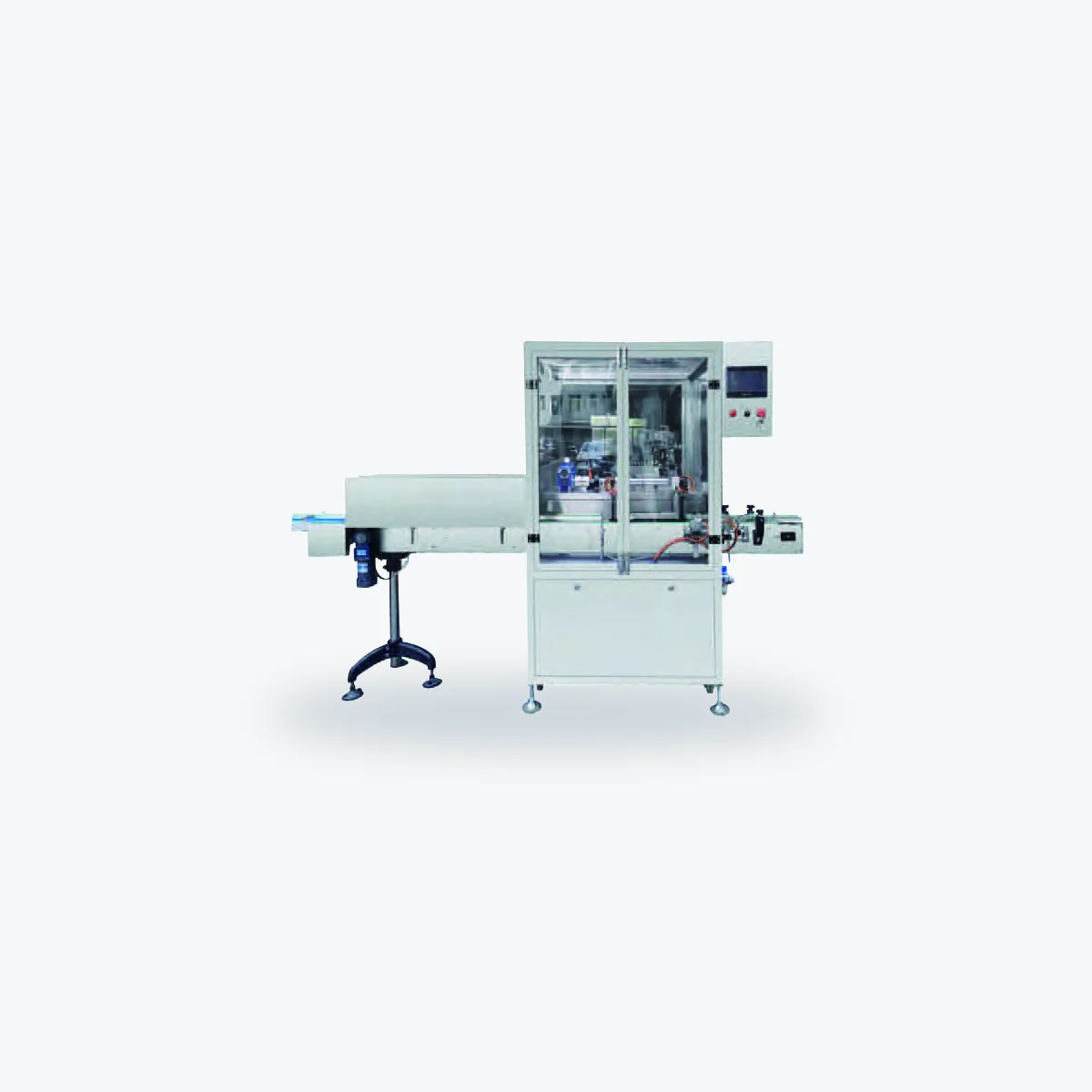

UNIEN Technology Bottle Air Cleaning Machine

UT-BAC

Overview

Bottle Air Cleaning Machine

The machine family documented in the source catalog as Bottle Air Cleaning Machine, with model and technical configuration data transcribed from the catalog tables.

UNIEN model familyUT-BAC

UT-BAC-10UT-BAC-20UT-BAC-30UT-BAC-40

UT-BAC

Catalog-listed features

Manufacturer terminology is shown in English to preserve catalog accuracy.

With high efficiency and stable washing effect. The machine won’t make washing if there is no bottle coming.

The bottle flushing speed can be controlled freely, and the current production speed can be displayed digitally.

The turnover manipulator has the advantages of accurate bottle grasping positioning and free turnover. The blowing valve has the advantages of good sealing performance and long service life.

The manipulator is made of stainless steel, the bottle turning and bottle placing are stable and free.

UT-BAC

Technical specifications

Values are transcribed from the source catalog. Final configuration is verified during quotation.

UT-BAC-10UT-BAC-20UT-BAC-30UT-BAC-40

Model	UT-BAC-10	UT-BAC-20	UT-BAC-30	UT-BAC-40
Application	Plastic Round Bottles	—	—	—
Capacity	30-40Bottles/min	60-80Bottles/min	100-120Bottles/min	130-150Bottles/min
Power Supply	220V 50HZ 1.5KW	220V 50HZ 1.5KW	380V 50HZ 1.1KW	220V/380V 50HZ 3.0KW
Air Consumption	0.6Mpa 3L/min	0.6Mpa 3L/min	0.6Mpa 3L/min	0.6Mpa 15m3/h
Dimension	2000×1000×1600mm	2000×1000×1600mm	2400×1200×1800mm	2400×1200×1800mm
Weight	450KG	550KG	600KG	700KG
